Solar Blind

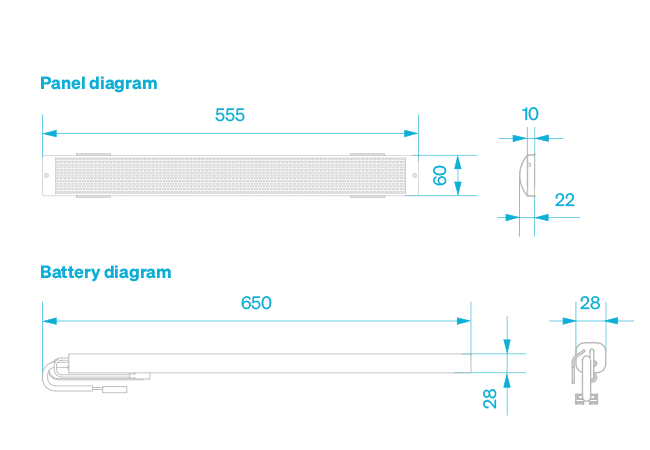

The Solar Blind variant for external venetian blinds uses a solar panel that can be positioned up to 6 meters away from the motor. The panel is supplied separately and is usually installed on the cover plate. The battery can be mounted on the headrail or another suitable location, but no more than 3 meters from the motor.
The panel charges the battery, allowing the system to operate without mains power and providing up to 45 days of operation on a full charge without sunlight. Wireless radio control and the absence of mains wiring ensure a quick and clean installation, making it ideal for renovations, shaded facades, or north-facing orientations, where the panel can be optimally positioned toward the sun.
22 Slat Colors
The panel charges the battery, allowing the system to operate without mains power and providing up to 45 days of operation on a full charge without sunlight. Wireless radio control and the absence of mains wiring ensure a quick and clean installation, making it ideal for renovations, shaded facades, or north-facing orientations, where the panel can be optimally positioned toward the sun.
Energy self-sufficiency
Solar shading uses energy directly from the sun, so it does not require a mains connection. It provides long-term, cost-effective, and environmentally friendly operation without any additional electricity costs.
Sustainable approach
Operation on solar energy helps reduce the carbon footprint of the building and supports sustainable housing. Solar shading uses a clean, renewable source without negative environmental impacts.
Fast and clean installation
The installation takes place without cutting into walls or complex wiring. Solar shading is ideal for finished façades or reconstructions, where minimising construction interventions is crucial.
Technical parameters
| S90, Z90, Z70, C80, C65, F80, STL | |
|---|---|
| Width (m) | 780 — 5,000 |
| Height (m) | 500 — 5,000 |
| Maximum area (m2) | up to 10 |
Colors
Slat Colors
010
RAL 9003/S
071
VSR071/S
110
VSR110/S
130
RAL 7038/S
140
RAL 9006/S
140H
RAL 9006/H
240
VSR240/S
266
January2
330
RAL 3004/S
716
RAL 7016/S
721
RAL 7021/S
722
RAL 7022/S
735
RAL 7035/S
737
RAL 7037/S
739
RAL 7039
780
VSR780/S
905
RAL 9005/S
907
RAL 9007/S
908
SW203G/S
910
RAL 9010/S
DB703
DB703/S
YW359F
YW359F
H — SMOOTH COATING S — STRUKTURAL COATING
The RAL/VSR color number is only approximate, it is the closest shade on the RAL/VSR scale to the slat color. Test how the color looks on the slats by clicking any color. Non-standard colors are only on request.
